MCN-LF process pump line is specifically designed to provide superior performance for low flow services of the Chemical Process Industries. They comply with ASME/ANSI B73.1M standard. Power end kit and stuffing box kit are fully interchangeable with MCN-G series pumps.
Paper and Pulp
All process industry
Tech Data Dis.charge Size：1＂-1.5＂
Capacity：Max 220 USGPM/H
Head：Max 925 Ft
Media Temp：+371℃
System Pressure:Max 25BAR
Designation MCN-LF 1x1.5-8：
Impeller Diameter: 8”
Outlet: 1”
Inlet: 1.5”
Series code: MCN-LF

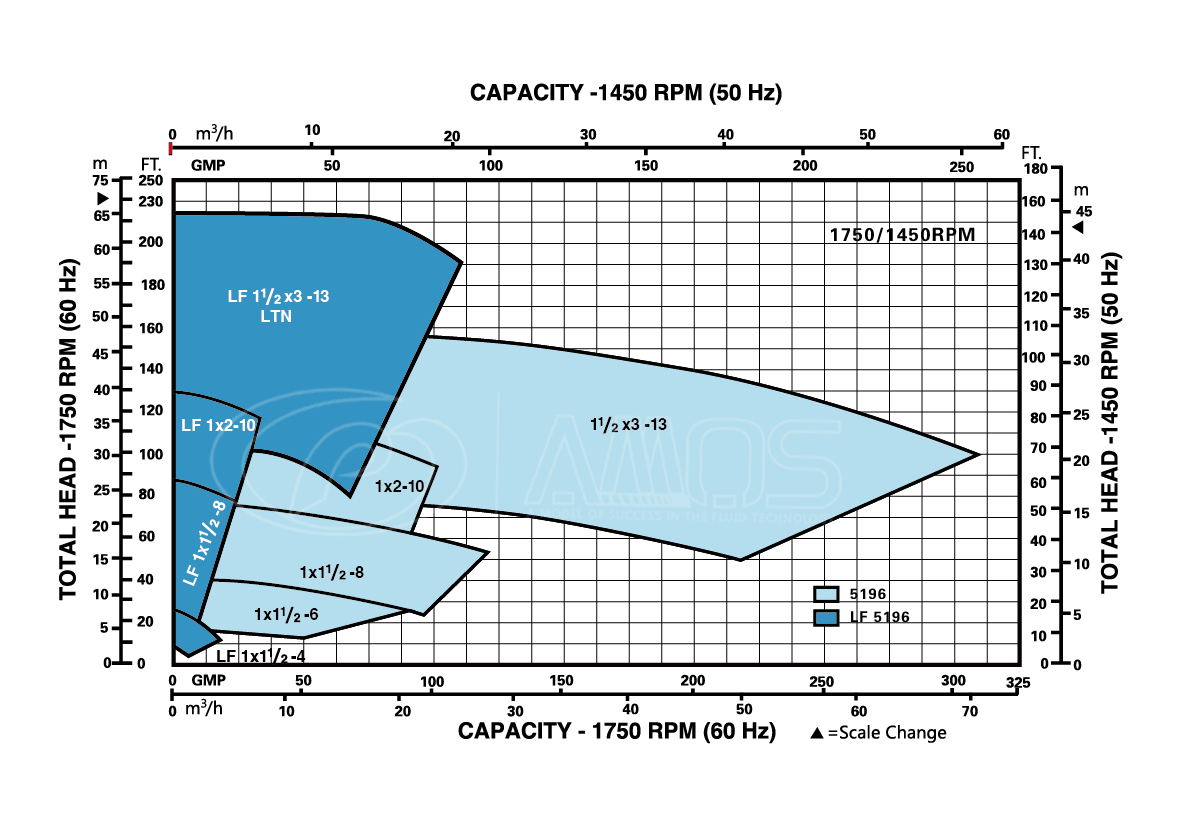

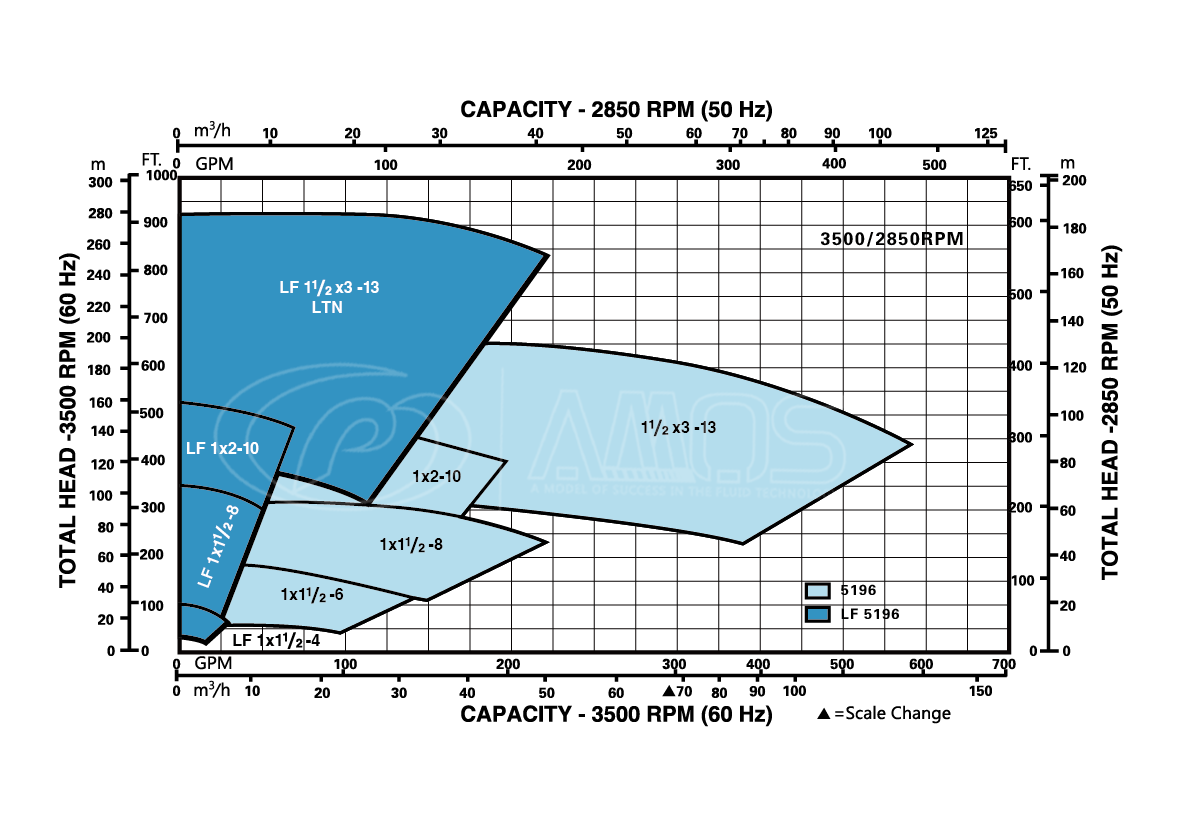

Performance Chart
MCN-LF
